Sensor CMOS 1/3 inch
Pixels 1280 x 1024 pixels, 1.3 Mpix
Scan mode Progressive, rolling shutter
Pixel size 3.6 um x 3.6 um
Filter RGB
Mount C-mount
Max fps Up to 15 frames per second (1280 x 1024 pixels)
Up to 30 frames per second (640 x 480 pixels)
ADC 10 bits
Color depth 24 bits
Sensitivity 1.3 V/lux-sec @ 550 nm
Exposure Automatic or manual, from 1 ms to 300 ms
White balance Automatic/manual
Dynamic range 72 db
S/N max 55 db
Data interface USB 2.0 at 480 Mb/s
Operation 0 – 60 graden C, 45-85 procent humidity
Storage temperature -20 to 70 graden Celsius
Supplied with 0.35x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for
stereomicroscopes, 76 x 24 mm calibration slide (1mm/100),
CDROM with ImageFocus 4 software, carton box
Software Windows XP, Vista, Windows7, Windows 8 (32 and 64 bit configurations)

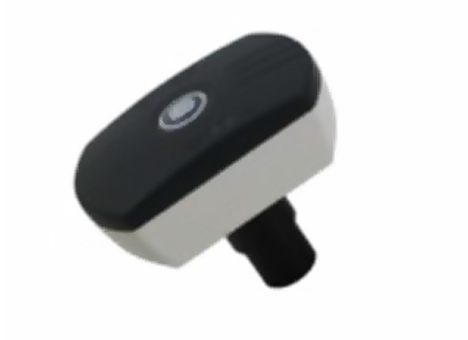

Product number DC.1300c
